Anti freezing Geotextile fabric
Classification :
keyword:
Geotextile
PRODUCT DETAILS

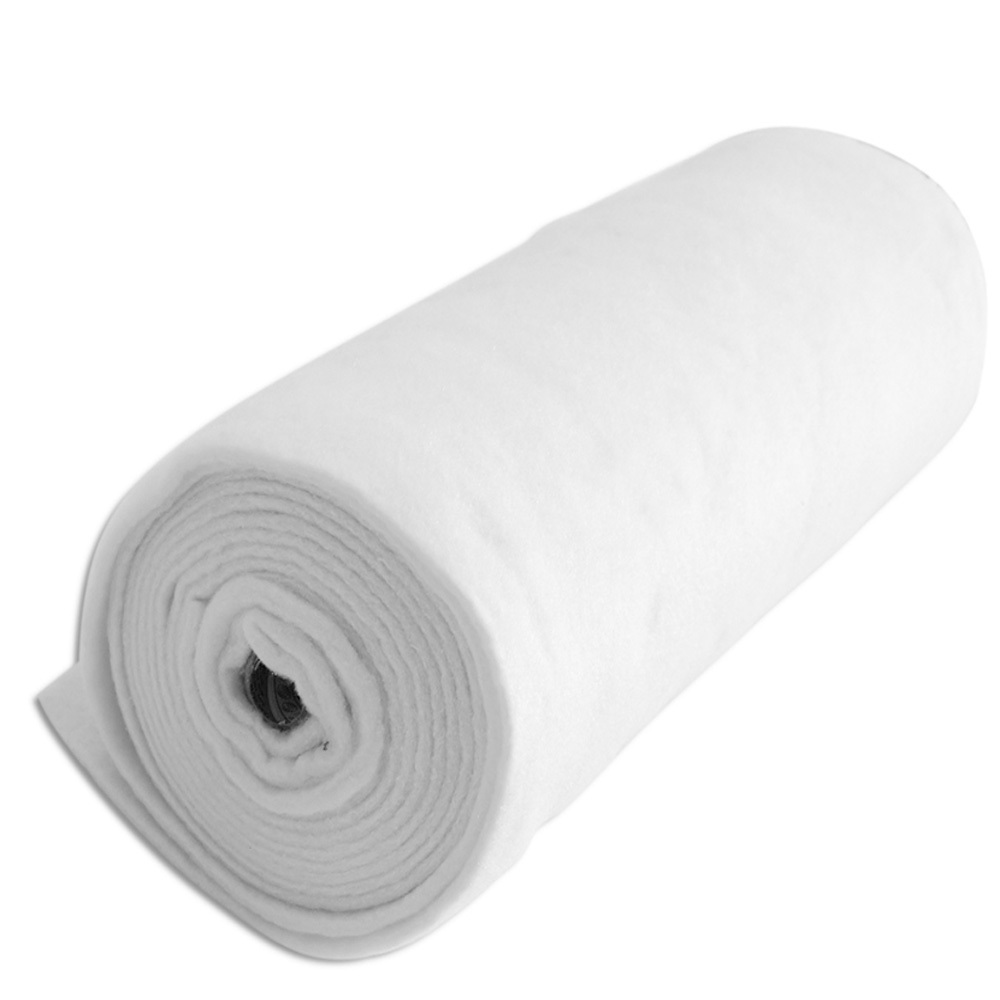

Anti freezing Geotextile fabric
| Product specification |
| Name; Non-woven geotextiles |
| Thickness; 100g-800g |
| Length; 1-6 meters, if there is a unique measurement can be customized |
| Color; White, black, orange, aid customized hues |
introduce
Geotextile, additionally acknowledged as geotextile, is a permeable geosynthetic cloth made from artificial fibers thru needle punching or weaving. Geotextile is one of the new substances of geosynthetics, and the completed product is in the shape of a cloth, with a width of 4-6 meters and a size of 50-100 meters.
 |
 |
 |
 |
|
Function;
1: Filtration
When water flows from the fine soil layer to the coarse soil layer, the polyester short fiber needle punched geotextile has good breathability and water permeability, making the water flow
By effectively intercepting soil particles, fine sand, small stones, etc., to maintain the stability of soil and water engineering.
2: Drainage
Polyester short fiber needle punched geotextile has good water conductivity, which can form drainage channels inside the soil and reduce the amount of water in the soil structure
Residual liquid and gas discharge.
|
Properties |
Test Method |
Unit |
GXSF150 |
GXSF200 |
GXSF300 |
GXSF400 |
GXSF500 |
GXSF600 |
GXSF800 |
GXSF1000 |
|
Tensile Strength(MD/TD) |
ASTM D4595 |
kN/m |
8 |
11 |
20 |
24 |
28 |
34 |
48 |
50 |
|
Tensile Elongation(MD/TD) |
ASTM D4595 |
% |
50 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
|
Grab Tensile Strength(MD/TD) |
ASTM D4632 |
N |
520 |
700 |
1100 |
1500 |
1800 |
2200 |
2800 |
3000 |
|
Grab Elongation(MD/TD) |
ASTM D4632 |
% |
50 |
50 |
60 |
60 |
60 |
60 |
60 |
60 |
|
Trapezoidal Tear Strength(MD/TD) |
ASTM D4533 |
N |
220 |
330 |
400 |
480 |
560 |
620 |
860 |
880 |
|
CBR Burst Strength |
ASTM D6241 |
N |
1700 |
2400 |
3200 |
4300 |
5300 |
6000 |
6800 |
7000 |
|
Pore Size O90 |
ASTM D4751 |
µm |
90 |
85 |
80 |
75 |
70 |
60 |
55 |
50 |
|
Water Flow Q100 |
ASTM D4491 |
L/m2/s |
160 |
145 |
140 |
120 |
105 |
95 |
90 |
80 |
|
Weight |
ASTM D5261 |
g/m2 |
150 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
Product Feedback
Geotextile packaging
Geotextiles are packaged in rolls. The fixed length value is determined according to the product specification or through negotiation between the parties concerned.
Support customization; Specification, length, manufacturer name, production date, inspection responsibility stamp, etc.
 |
 |
|
|
|
product certificate

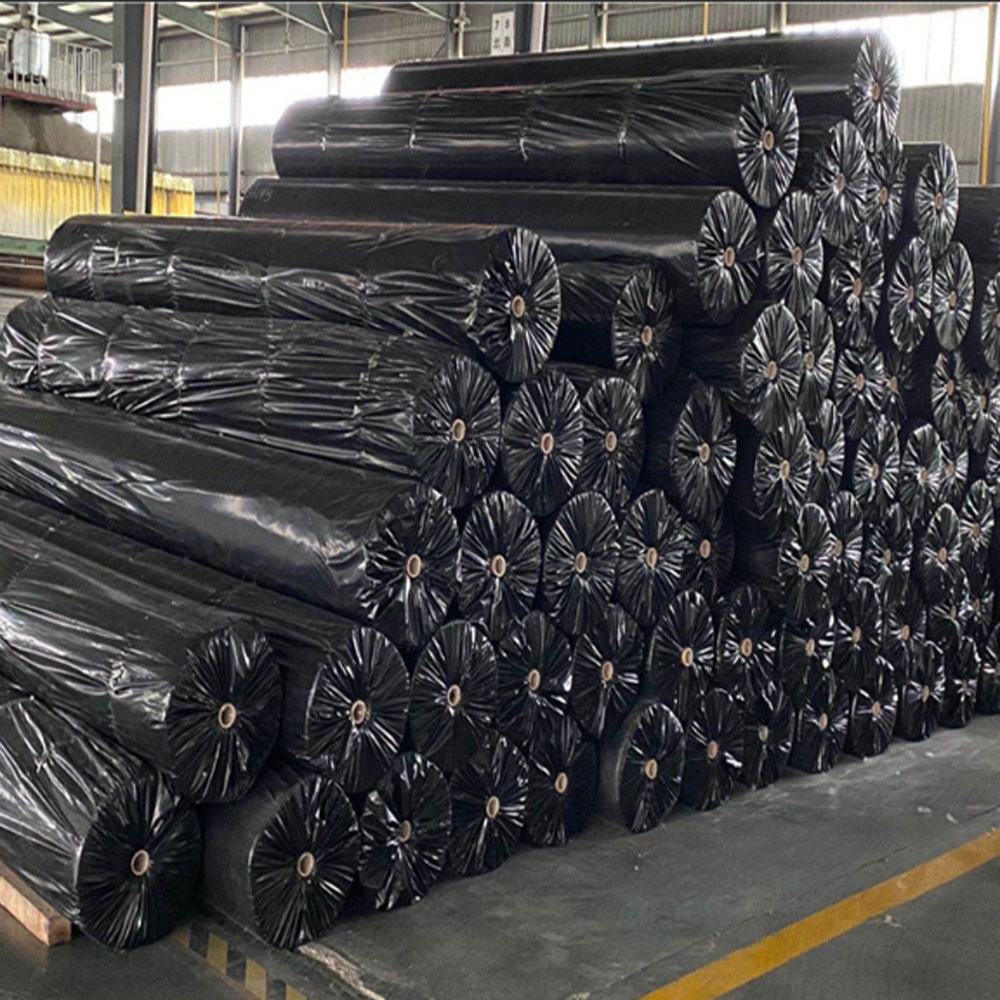

Factory Appearance
