Three Dimensional Geomat
Classification :
keyword:
Three Dimensional Geomat
PRODUCT DETAILS
Specification - Lin Yuan 3D Geomat
Introduction

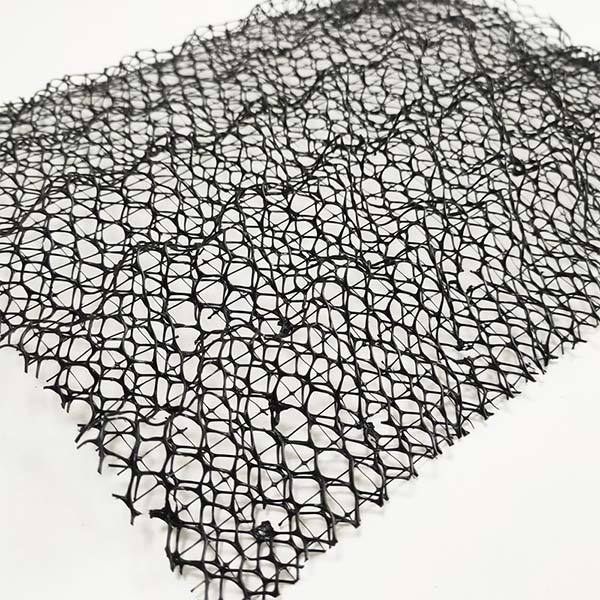

3D Geomat is kind of new 3D structural geosynthetic product which is applied in water and soil Conservation
Performance
1.Preventing soil erosion
2.Increasing the greening area
3.Improving the ecological environment
 |
 |
 |
 |
Application

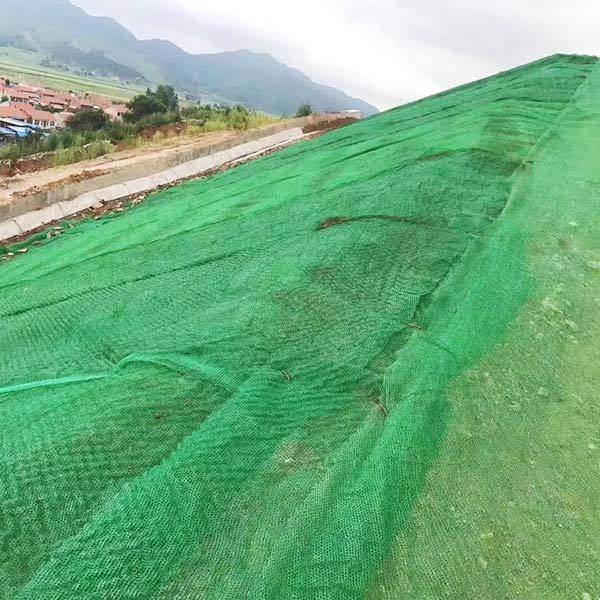

1.Before the greensward grows, it prevents the surface of the land from the erosion of the wind and rain.
2.Forming compound protection layer with the plant, standing the wash-out of the high water level and
high speed current.

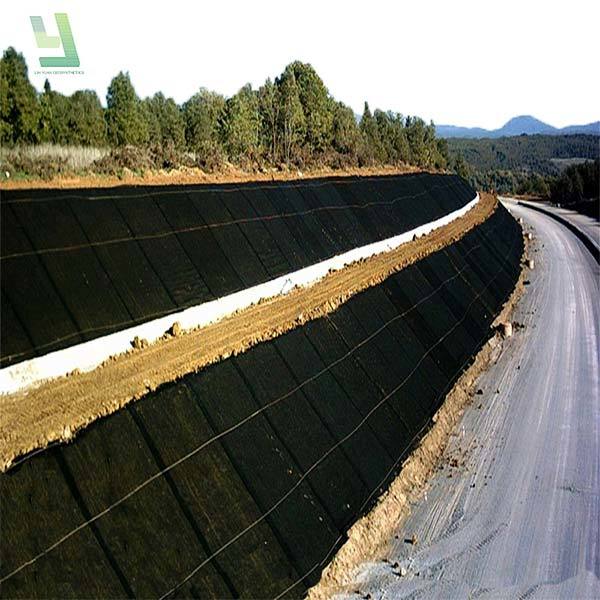

3.Replacing the concrete, asphalt, and block, using in the slope surface protection of roadway, railway, river-way, dyke, and the hillside, etc.
Specification
|
Specification |
EM2 |
EM3 |
EM4 |
EM5 |
|
Weight per sq.m.≥(g/m2) |
220 |
260 |
350 |
430 |
|
Thickness≥(mm) |
10 |
12 |
14 |
16 |
|
Width≥(m) |
2 |
|||
|
Length≥(m) |
30 |
|||
|
Vertical tensile strength ≥(kN/m) |
0.8 |
1.4 |
2 |
3.2 |
|
Horizontal tensile strength ≥(kN/m) |
0.8 |
1.4 |
2 |
3.2 |
|
Remark: The special spec or size can be manufactured according to the demands of the contract or agreement |
||||
