Fish pond anti-seepage geomembrane
Classification :
keyword:
Geomembrane
PRODUCT DETAILS

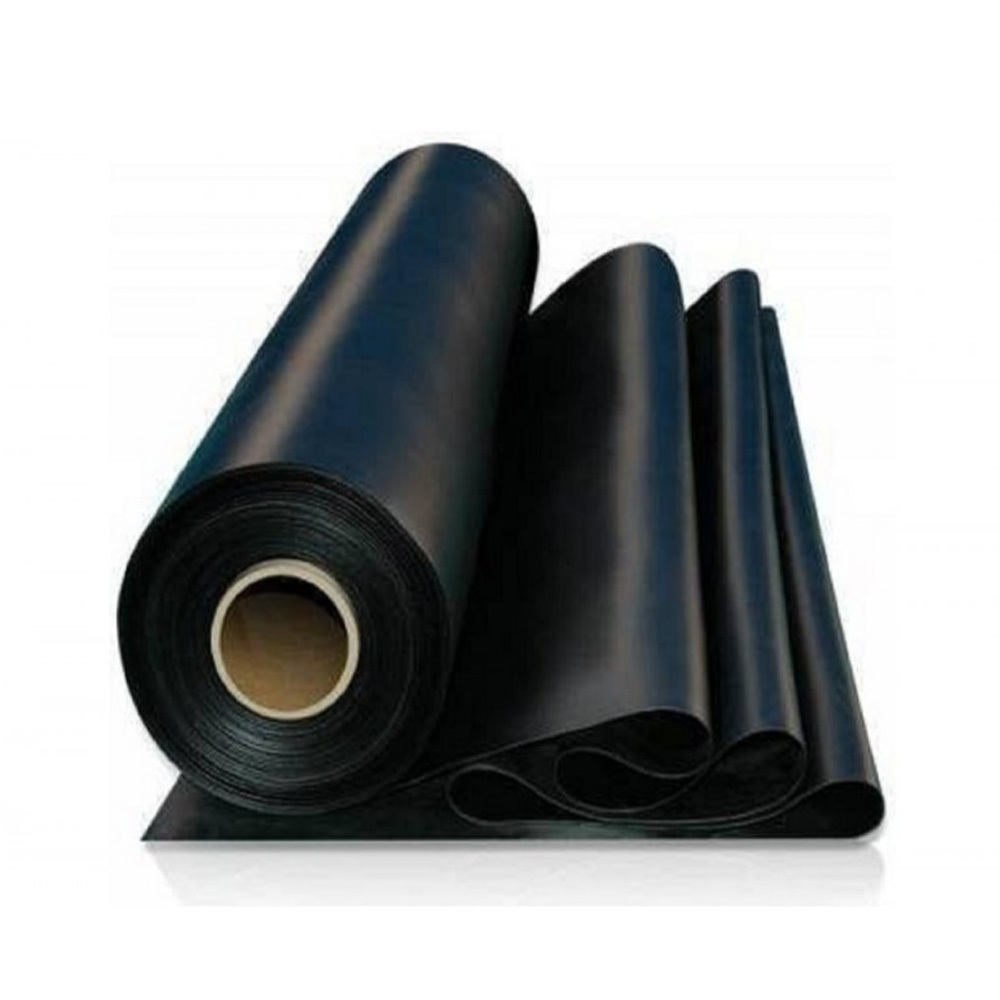

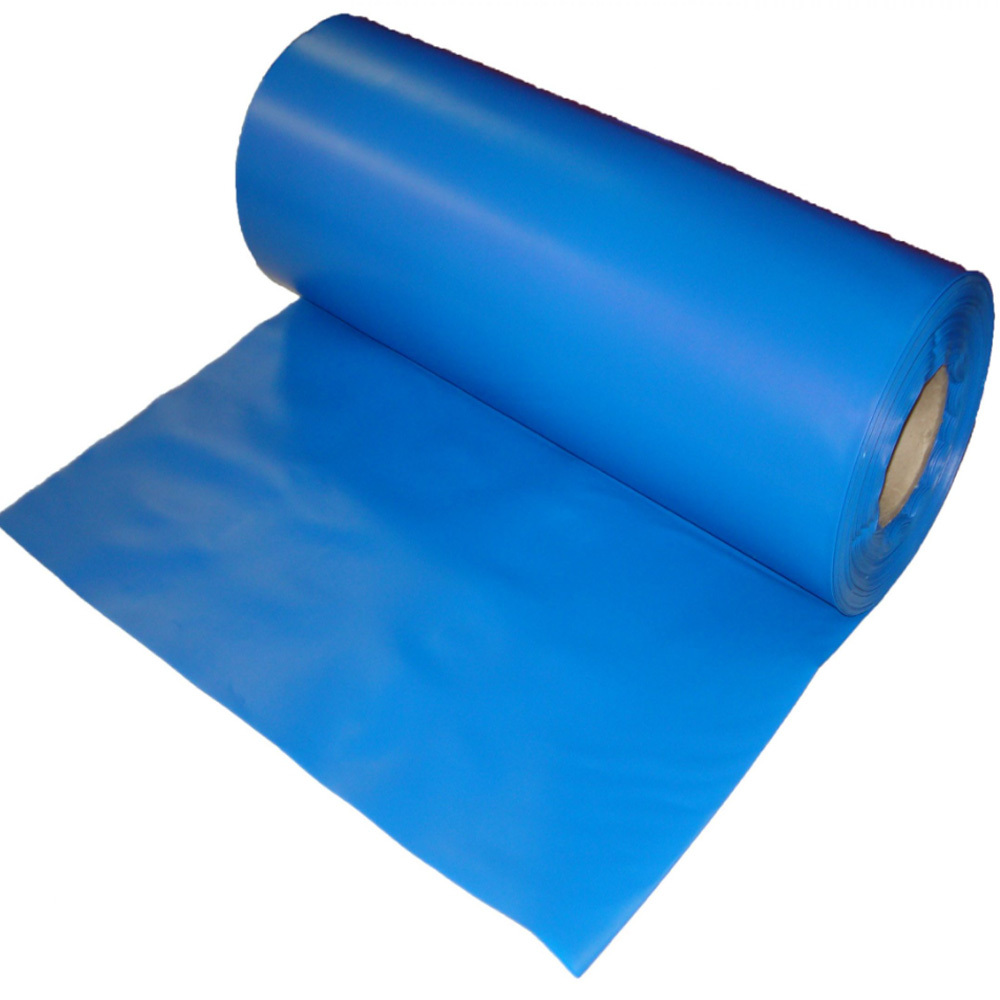

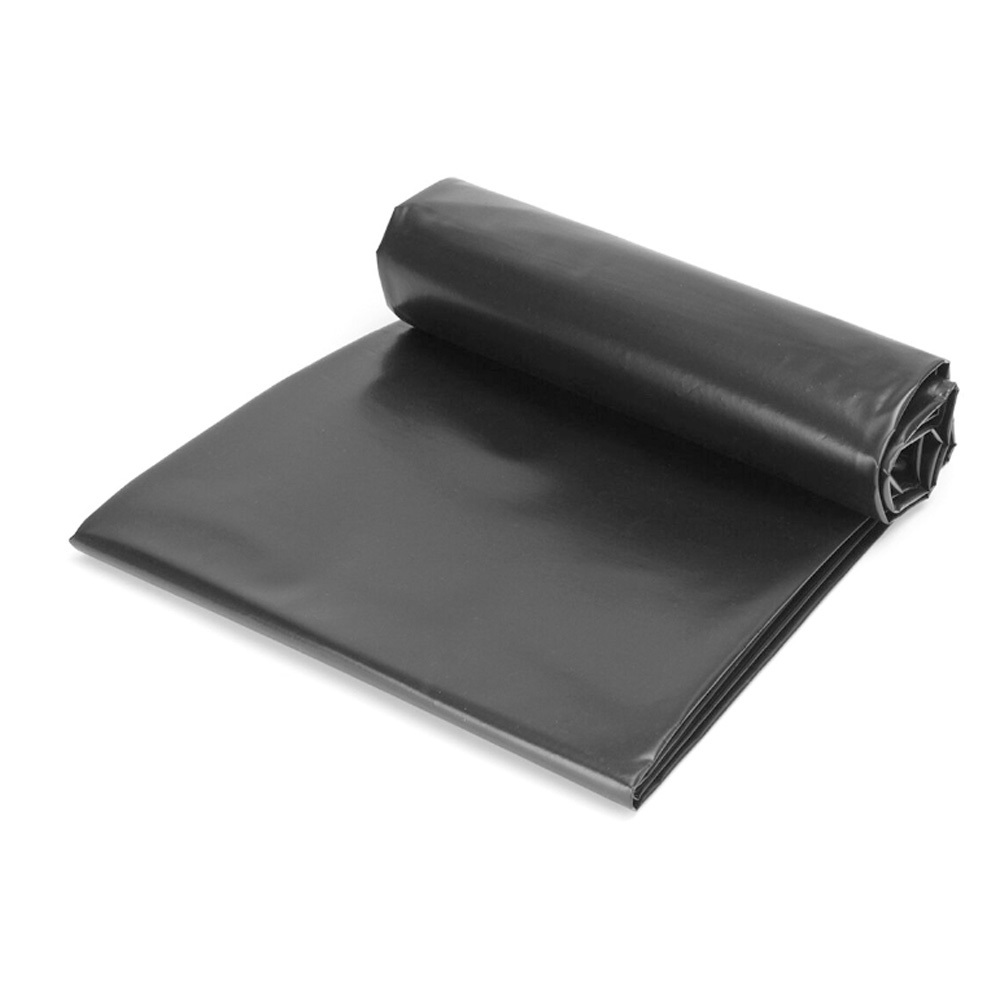

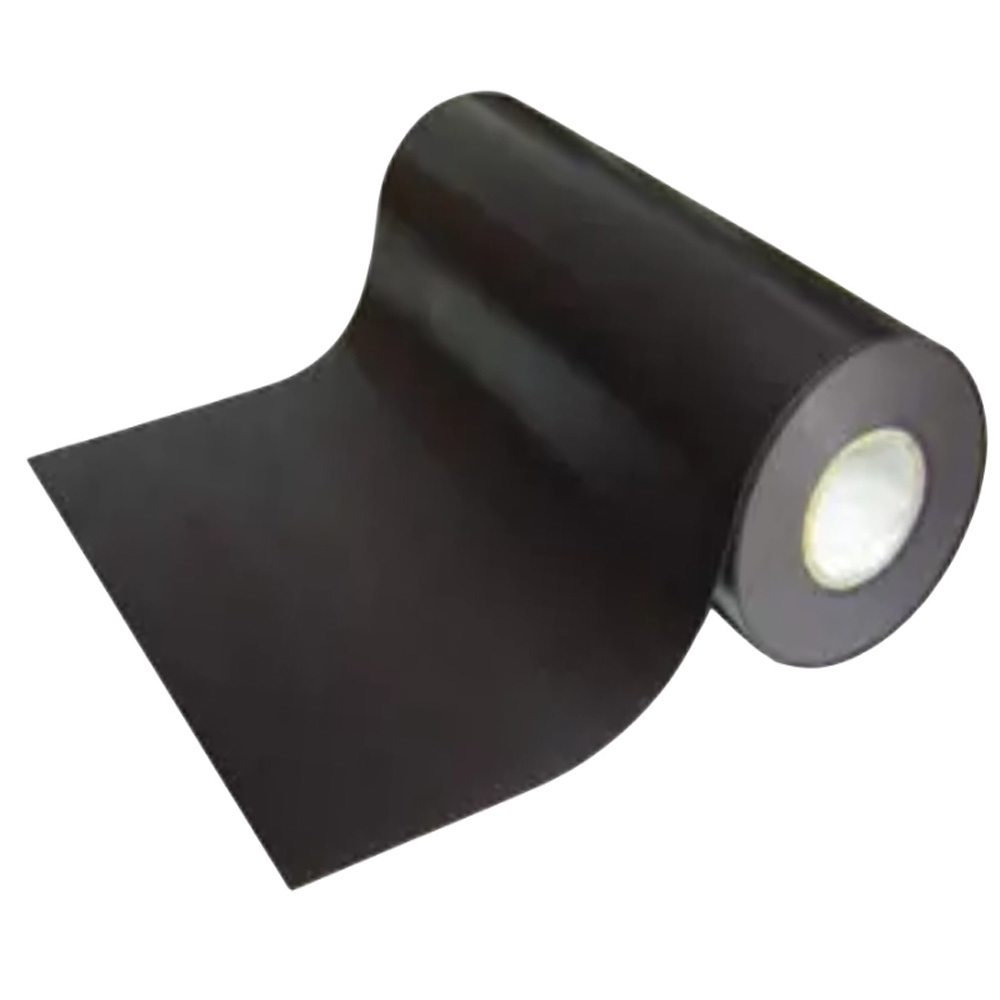

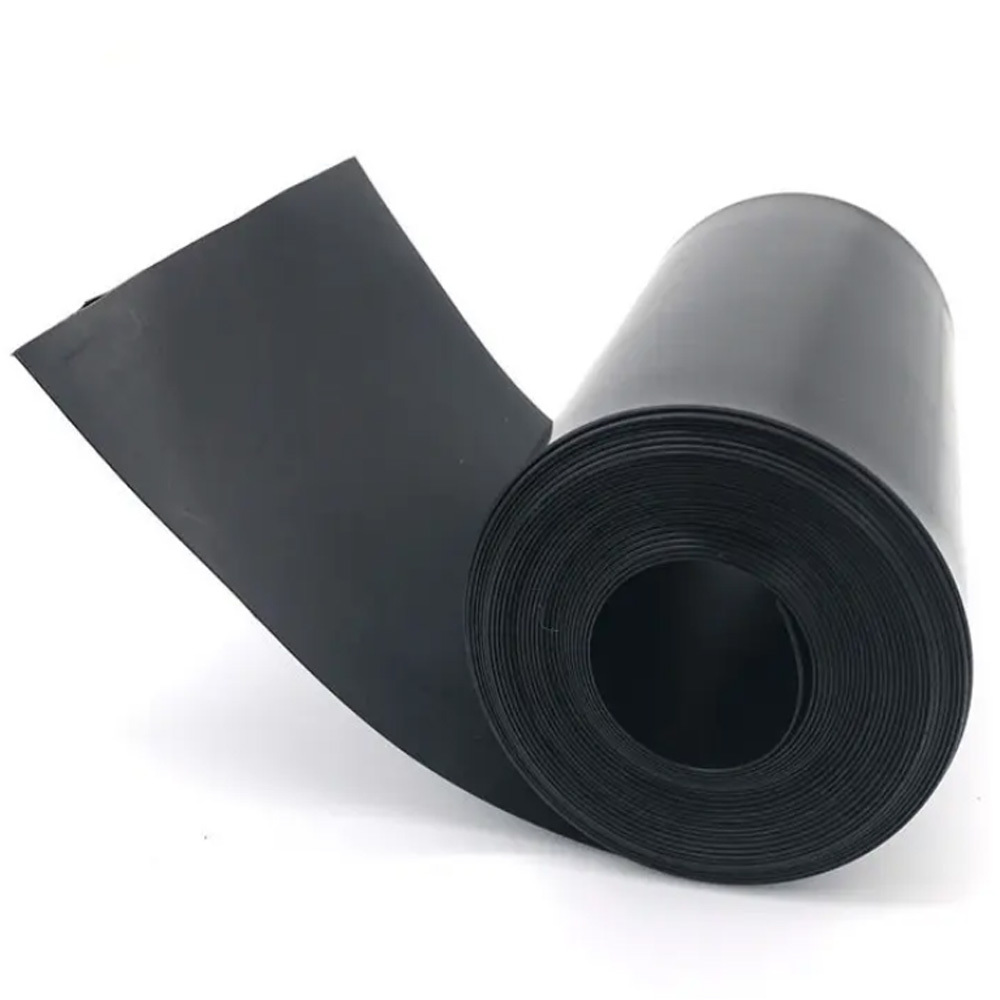

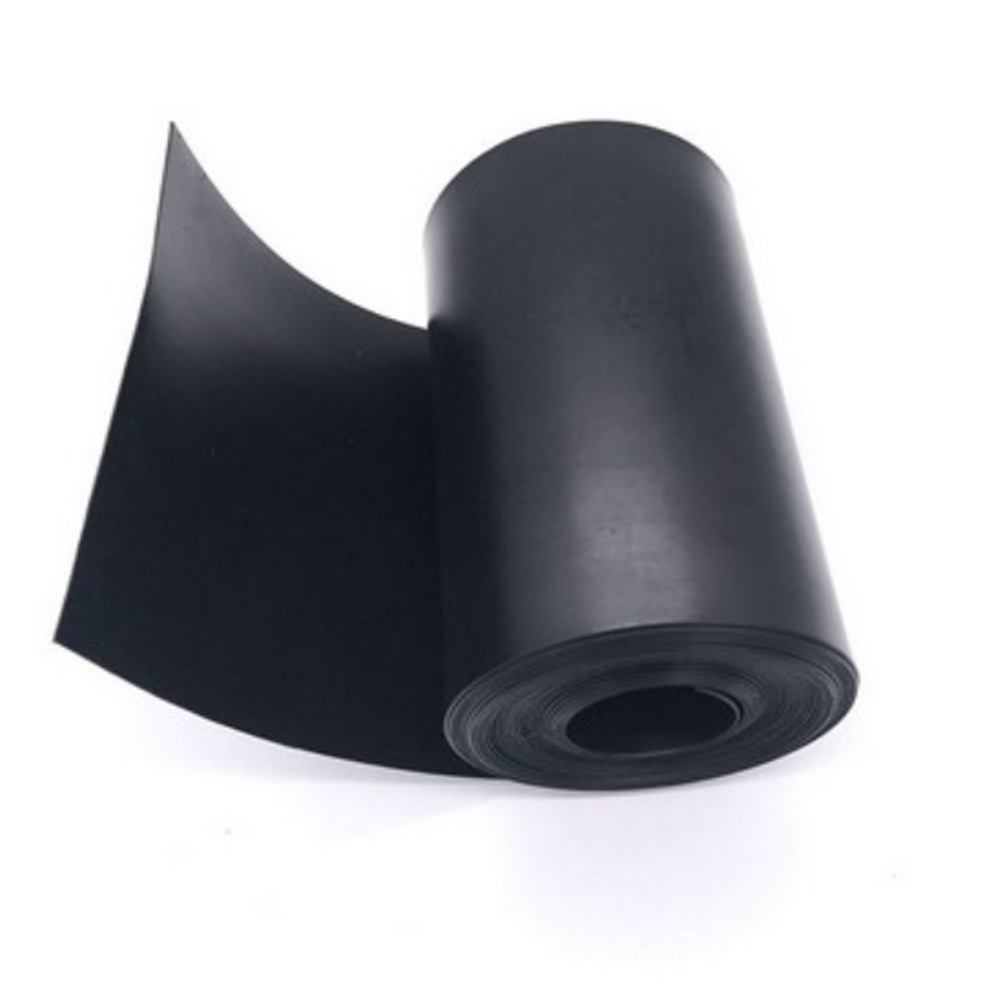

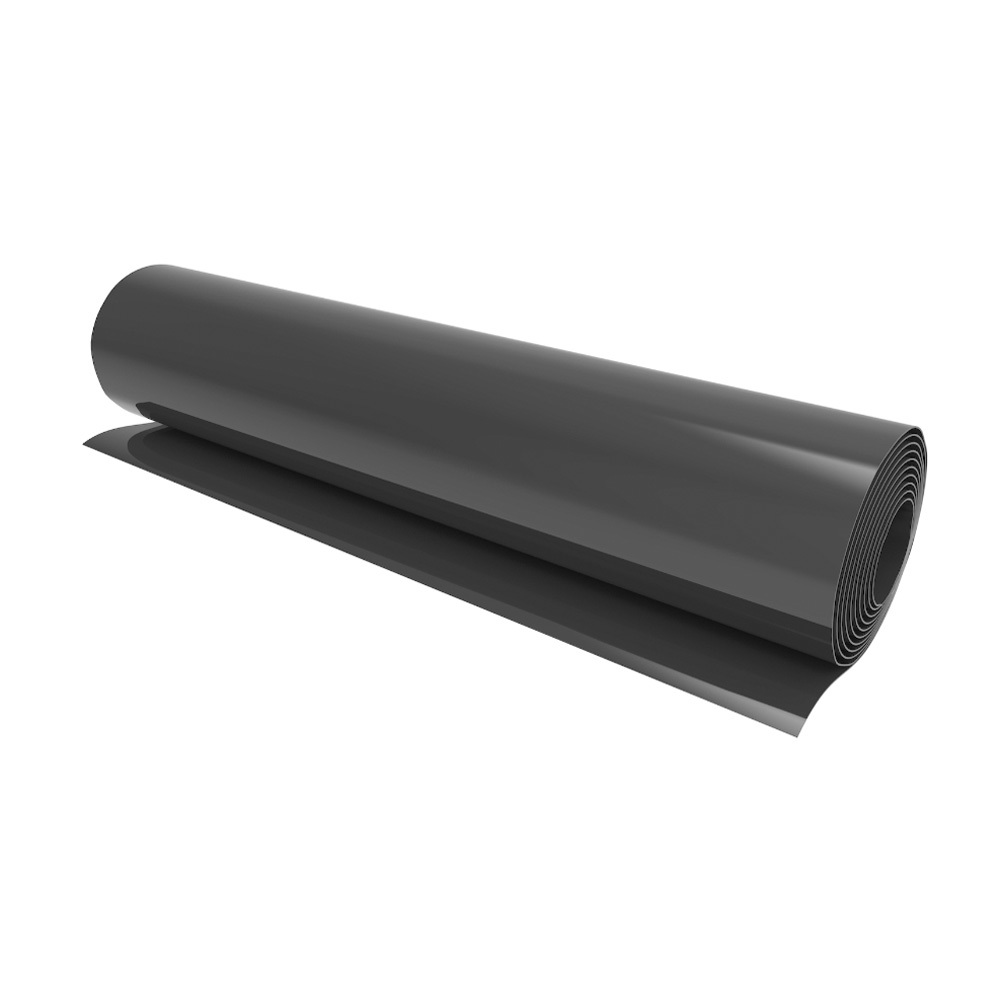

Fish pond anti-seepage geomembrane
| Name; geomembrane |
| Length; 1-6m |
| Thickness; 0.3 -2 mm |
| Material; HDPE, LDPE, PVC, LLDPE |
| Color; Black, white, blue, customized products can be supported according to customer needs |
Introduction
Geomembrane makes use of plastic movie as the anti-seepage substrate, and its anti-seepage fashionable usual overall performance many times relies upon upon on the anti-seepage common basic overall performance of plastic film. The plastic films used for anti-seepage facets at domestic and far away locations generally embody polyvinyl chloride (PVC) and polyethylene (PE), EVA (ethylene/vinyl acetate copolymer), and in tunnel applications, ECB (ethylene vinyl acetate modified asphalt combo geotextile) is in addition designed and used. They are polymer chemical bendy factors with small exclusive gravity, robust extensibility, excessive adaptability to deformation, corrosion resistance, low temperature resistance, and real frost resistance.
 |
 |
 |
 |
 |
Characteristic
1.Resistance to basis deformation: Because HDPE geomembrane has fantastic fracture elongation, it can face up to basis contract or groundwork deformation
2.Good effect: this is the best attribute of HDPE geomembrane.
3.After recovery: This is the best function of HDPE geomembrane, after use, as prolonged as it is put away, backfill the pool body, it can be restored to its originalstate.
 |
|
 |
 |
|
Product customization
Supports color, length, width, and material (packaging shape supports customization)
|
 |
 |
 |
 |
Specifications
|
Properties |
Test Method |
GMSH050 |
GMSH075 |
GMSH100 |
GMSH150 |
GMSH200 |
|
■ Thickness |
ASTM D5199 |
0.50 mm |
0.75 mm |
1.00 mm |
1.50 mm |
2.00 mm |
|
■ Density |
ASTM D1505 |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
|
Tensile Properties |
|
|
|
|
|
|
|
■ Yield strength ■ Break strength ■ Yield elongation ■ Break elongation |
ASTM D6693 Type IV
|
7 kN/m 13 kN/m 12% 700% |
11 kN/m 20 kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
|
■ Tear Resistance |
ASTM D1004 |
62 N |
93 N |
125 N |
187 N |
249 N |
|
■ Puncture Resistance |
ASTM D4833 |
160 N |
240 N |
320 N |
480 N |
640 N |
|
■ Stress Crack Resistance |
ASTM D5397 |
500 hrs |
500 hrs |
500 hrs |
500 hrs |
500 hrs |
|
■ Carbon Black Content |
ASTM D1603 |
2.0% |
2.0% |
2.0% |
2.0% |
2.0% |
|
■ Carbon Black Dispersion |
ASTM D5596 |
For 10 different views:9 in Categories 1 or 2 and 1 in Category 3 |
||||
|
■ Oxidative Induction Time (OIT) |
ASTM D3895 |
100 min. |
100 min. |
100 min. |
100 min. |
100 min. |
|
■ UV Resistance High Pressure OIT retained after 1600hrs |
ASTM D5885 |
50% |
50% |
50% |
50% |
50% |
|
Dimensions |
|
|
|
|
|
|
|
■ Roll Width (m) |
|
7 |
7 |
7 |
7 |
7 |
|
■ Roll Length (m) |
|
420 |
280 |
210 |
140 |
105 |

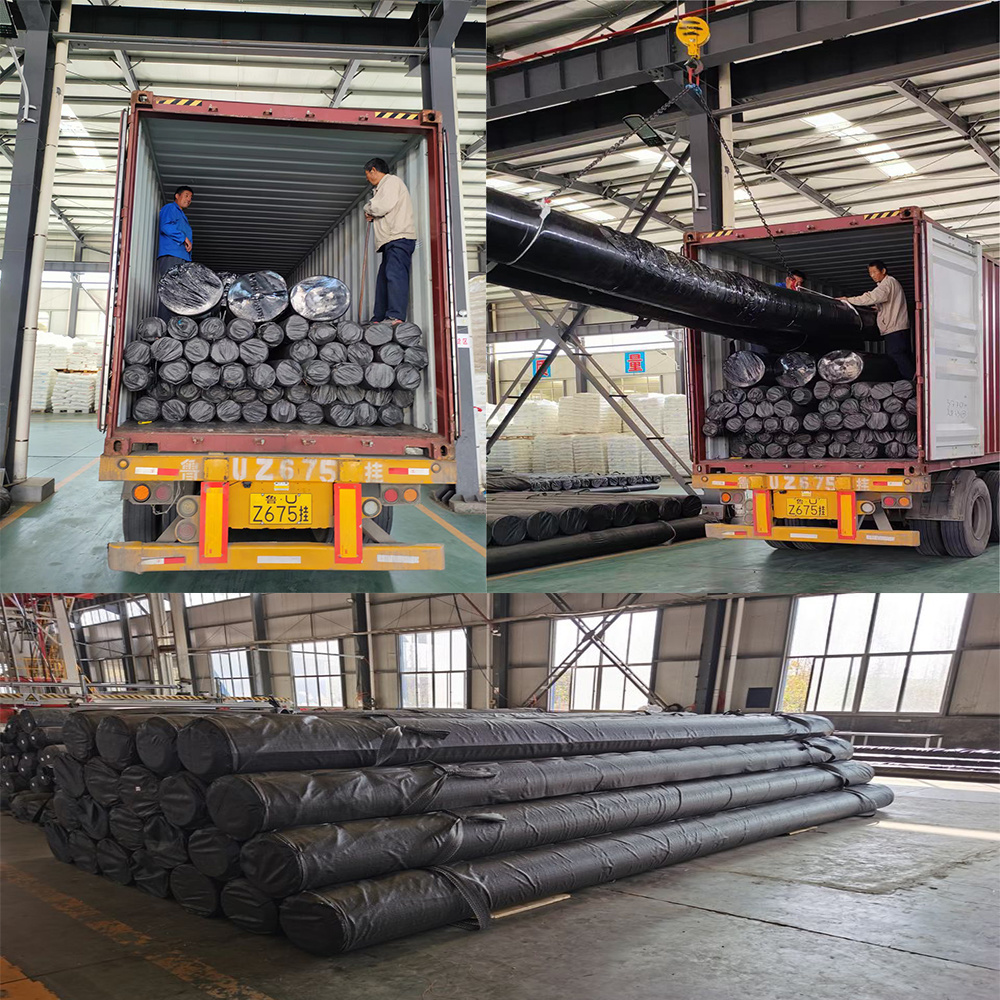

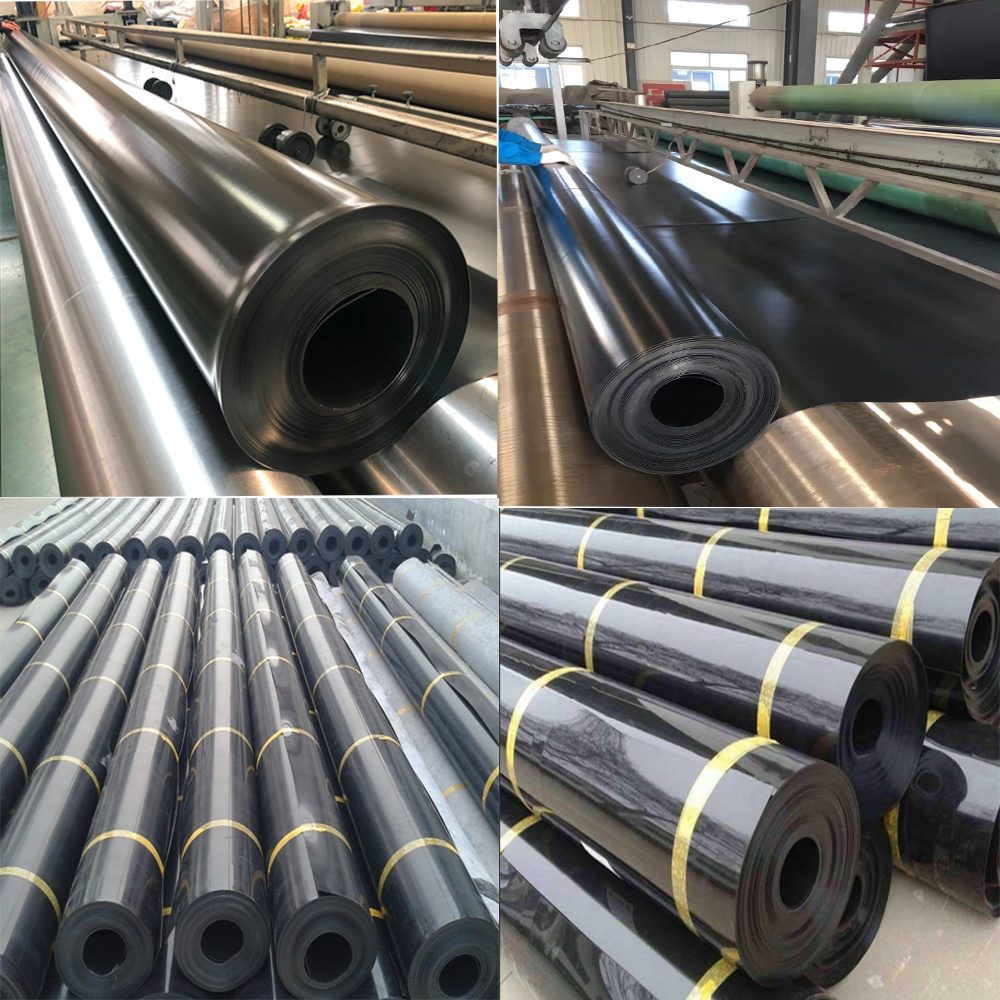

Factory strength
 |
 |

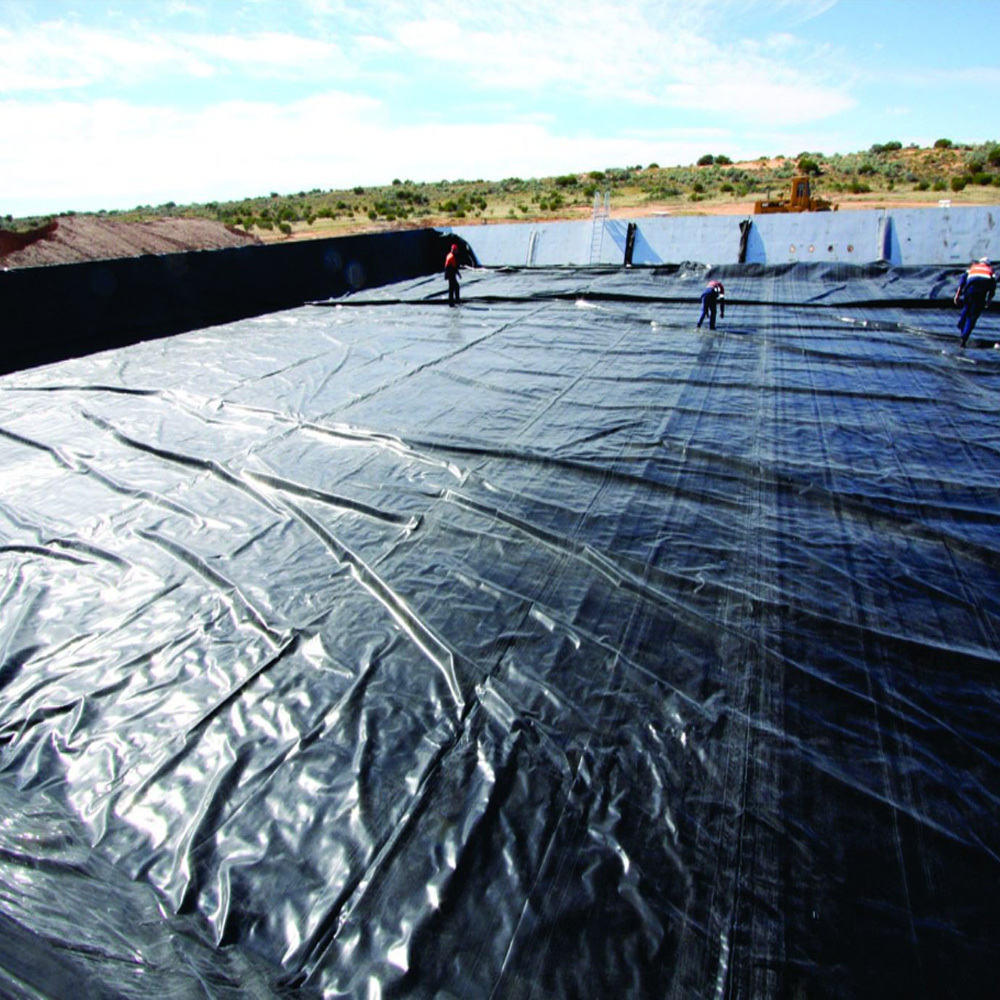

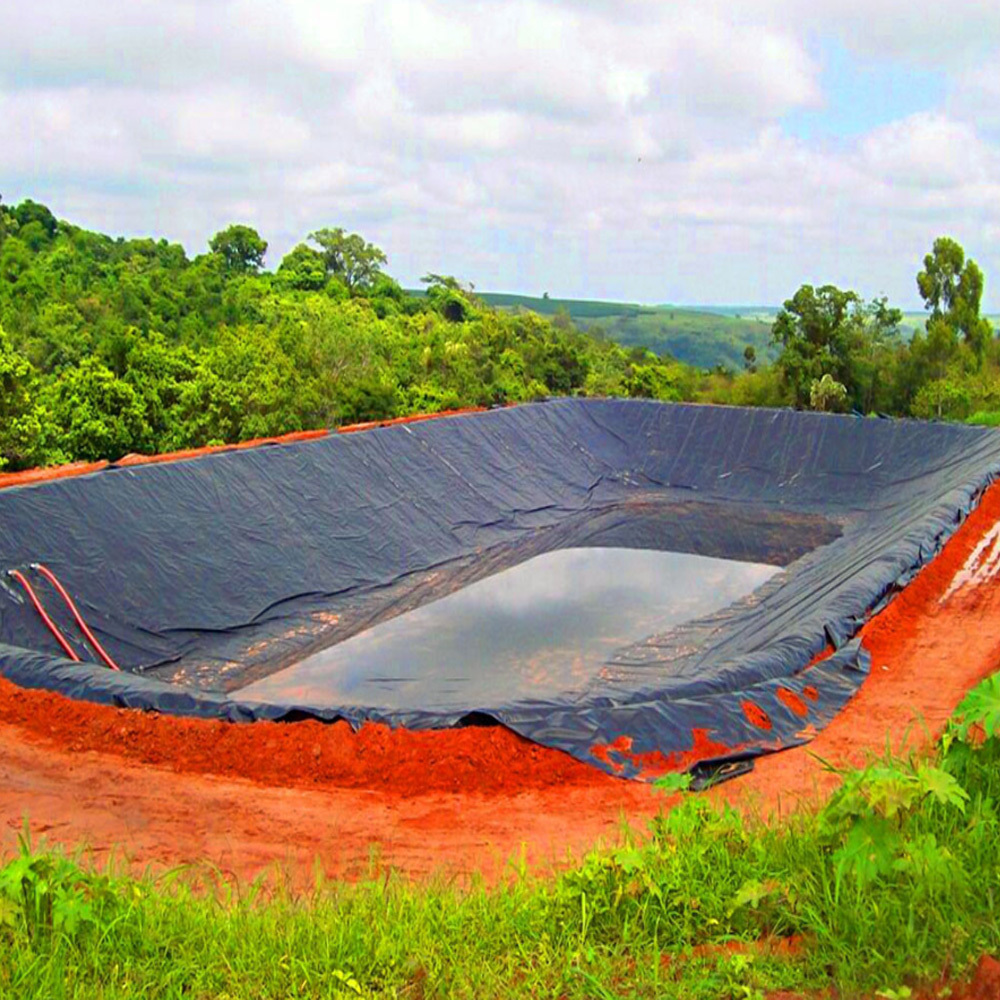

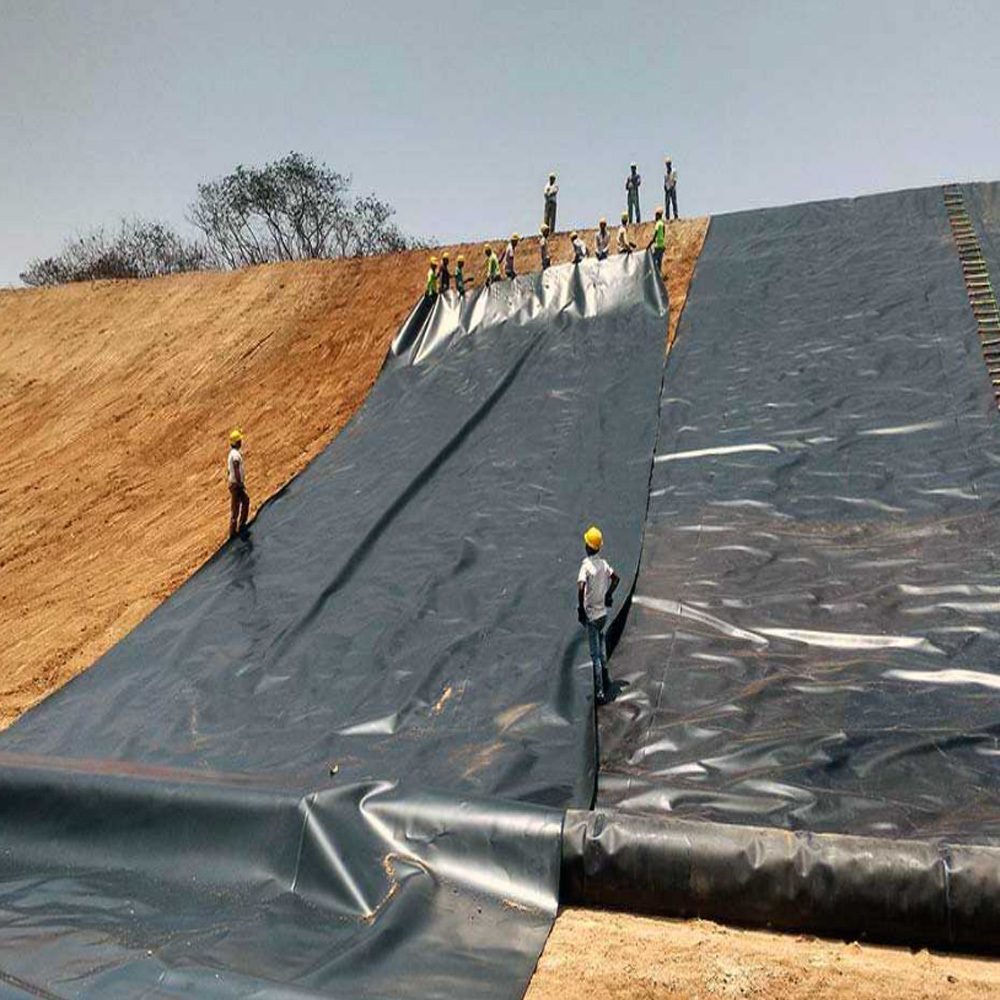

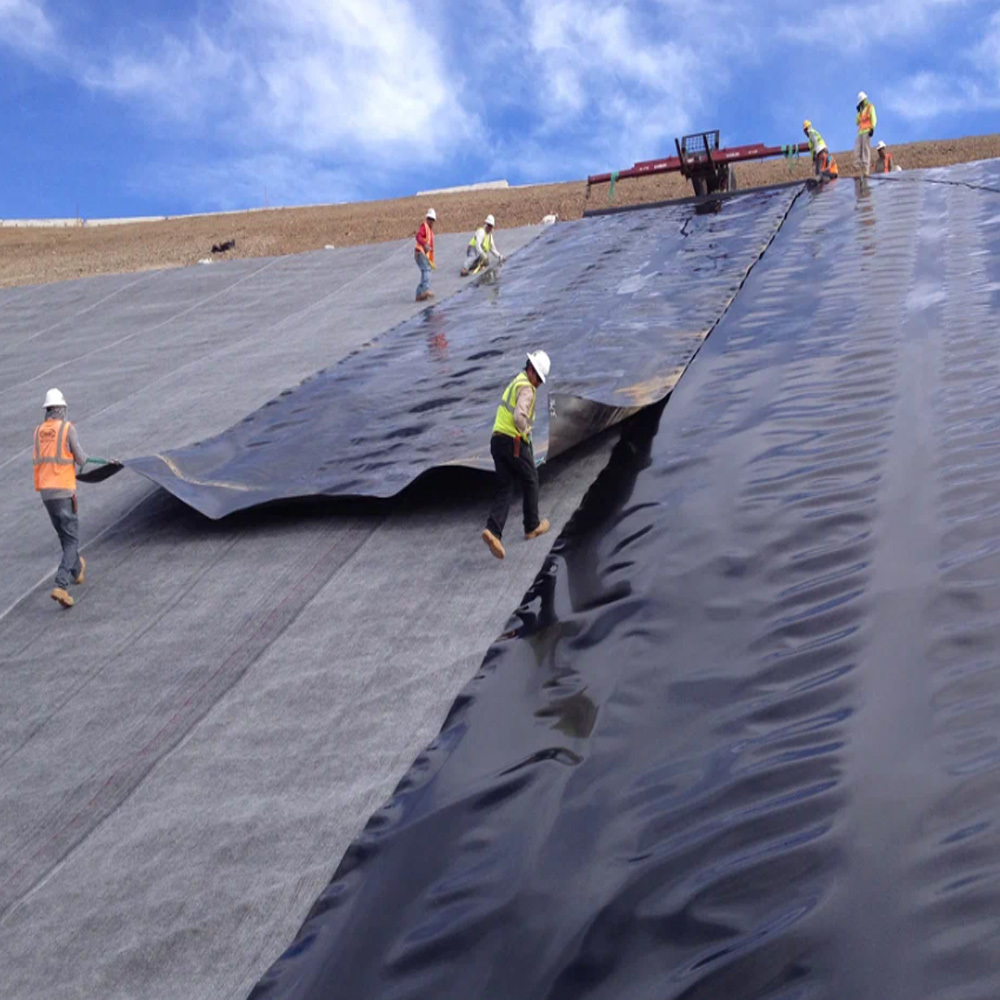

Applications
Applied to the projects of Landfill site, bank, dam, storage reservoir, channel, irrigation, highway, railway, tunnel, drinking tank, salt field bittern pan, chemical liquid storage, treatment tank, artificial lake and riverway etc.
Factory Appearance
