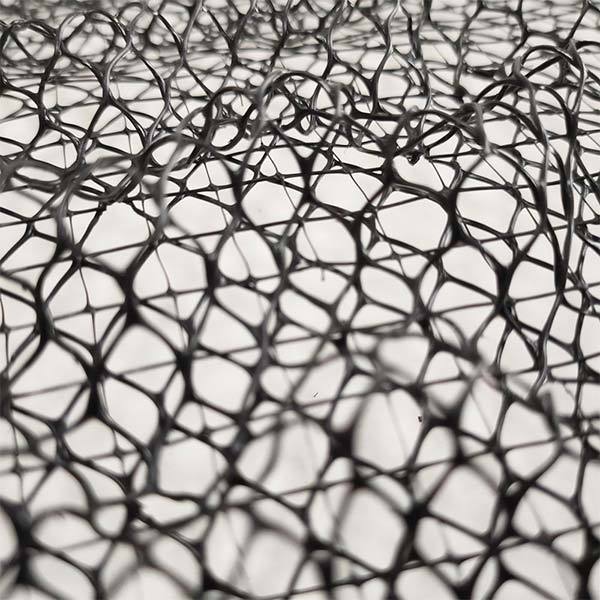

Dyke-dam Three Dimensional Geomat

Classification :

keyword:

Three Dimensional Geomat

PRODUCT DETAILS

                                                                             Dyke-dam Three Dimensional Geomat
Introduction

 The 3-dimensional vegetation community slope safety science combines the blessings of geotechnical community and vegetation slope protection, and can efficaciously resolve the safety of rock slopes and excessive steep slopes.







Performance

1.Preventing soil erosion
2.Increasing the greening area
3.Improving the ecological surroundings



Application

1.Before the greensward grows, it prevents the floor of the land from the erosion of the wind and rain.
2.Forming compound safety layer with the plant, standing the wash-out of the excessive water stage and
high velocity current.
3.Replacing the concrete, asphalt, and block, the use of in the slope floor safety of roadway, railway, river-way, dyke, and the hillside, etc.



Specification



Specification

EM2

EM3

EM4

EM5

Weight per sq.m.≥(g/m2)

220

260

350

430

Thickness≥(mm)

10

12

14

16

Width≥(m)

2

Length≥(m)

30

Vertical tensile strength ≥(kN/m)

0.8

1.4

2

3.2

Horizontal tensile strength ≥(kN/m)

0.8

1.4

2

3.2

Remark: The special spec or size can be manufactured according to the demands of the contract or agreement

Factory Appearance
