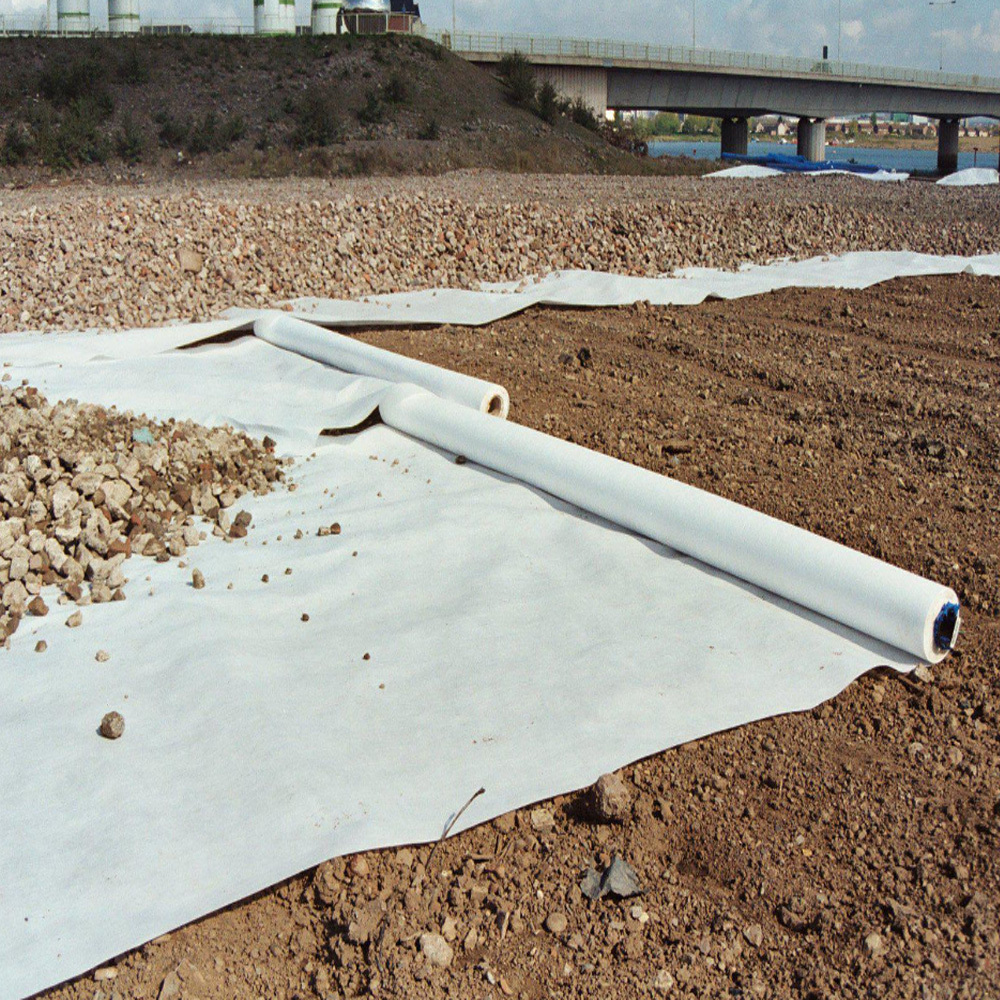

Special Geotextile for highway infrastructure reinforcement
Classification :
keyword:
Geotextile
PRODUCT DETAILS
Special Geotextile for highway infrastructure reinforcement Geotextile
Product specification
Name; Non-woven geotextiles
Thickness; 100g-800g
Length; 1-6 meters, if there is a special size can be customized
Color; White, black, orange, support custom colors
Geotextile, also known as geotextile, is a water-permeable geosynthetic material made of synthetic fibers by needling or weaving. Geotextile is one of the new materials geosynthetic materials, the finished product is cloth-like, the general width is 4-6 meters, the length is 50-100 meters. Geotextiles are divided into woven geotextiles and non-woven filament geotextiles.
Geotextile and foundation, soil, rock, soil or other building materials are used together, using the characteristics of textiles to strengthen, protect, drain, isolate, filter, bulk forming and other functions of the soil
|
Properties |
Test Method |
Unit |
GXSF150 |
GXSF200 |
GXSF300 |
GXSF400 |
GXSF500 |
GXSF600 |
GXSF800 |
GXSF1000 |
|
Tensile Strength(MD/TD) |
ASTM D4595 |
kN/m |
8 |
11 |
20 |
24 |
28 |
34 |
48 |
50 |
|
Tensile Elongation(MD/TD) |
ASTM D4595 |
% |
50 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
|
Grab Tensile Strength(MD/TD) |
ASTM D4632 |
N |
520 |
700 |
1100 |
1500 |
1800 |
2200 |
2800 |
3000 |
|
Grab Elongation(MD/TD) |
ASTM D4632 |
% |
50 |
50 |
60 |
60 |
60 |
60 |
60 |
60 |
|
Trapezoidal Tear Strength(MD/TD) |
ASTM D4533 |
N |
220 |
330 |
400 |
480 |
560 |
620 |
860 |
880 |
|
CBR Burst Strength |
ASTM D6241 |
N |
1700 |
2400 |
3200 |
4300 |
5300 |
6000 |
6800 |
7000 |
|
Pore Size O90 |
ASTM D4751 |
µm |
90 |
85 |
80 |
75 |
70 |
60 |
55 |
50 |
|
Water Flow Q100 |
ASTM D4491 |
L/m2/s |
160 |
145 |
140 |
120 |
105 |
95 |
90 |
80 |
|
Weight |
ASTM D5261 |
g/m2 |
150 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
Geotextile packaging
Geotextiles are packaged in rolls. The fixed length value is determined according to the product specification or through negotiation between the parties concerned.
Support customization; Specification, length, manufacturer name, production date, inspection responsibility stamp, etc.
Factory Appearance
