Impermeable soil and water Geomembrane
Classification :
keyword:
Geomembrane
PRODUCT DETAILS
Impermeable soil and water membrane
Introduction；
Smooth HDPE Geomembrane is manufactured from High Density Polyethylene resin with proportional carbon black antioxidant, anti-aging and UV-resistance substances through the science of coextrusion-blown triple layer. The surfaces of each aspects are smooth.
Geomembrane is a kind of waterproof barrier material based on high polymer. It is mainly divided into low density polyethylene (LDPE) geomembrane, high density polyethylene (HDPE) geomembrane and EVA geomembrane.HDPE film is suitable for aquaculture industry: intensive, factory aquaculture ponds, fish ponds, shrimp ponds lining, sea cucumber ring slope protection
Specifications；
|
Properties |
Test Method |
GMSH050 |
GMSH075 |
GMSH100 |
GMSH150 |
GMSH200 |
|
■ Thickness |
ASTM D5199 |
0.50 mm |
0.75 mm |
1.00 mm |
1.50 mm |
2.00 mm |
|
■ Density |
ASTM D1505 |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
|
Tensile Properties |
|
|
|
|
|
|
|
■ Yield strength ■ Break strength ■ Yield elongation ■ Break elongation |
ASTM D6693 Type IV
|
7 kN/m 13 kN/m 12% 700% |
11 kN/m 20 kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
|
■ Tear Resistance |
ASTM D1004 |
62 N |
93 N |
125 N |
187 N |
249 N |
|
■ Puncture Resistance |
ASTM D4833 |
160 N |
240 N |
320 N |
480 N |
640 N |
|
■ Stress Crack Resistance |
ASTM D5397 |
500 hrs |
500 hrs |
500 hrs |
500 hrs |
500 hrs |
|
■ Carbon Black Content |
ASTM D1603 |
2.0% |
2.0% |
2.0% |
2.0% |
2.0% |
|
■ Carbon Black Dispersion |
ASTM D5596 |
For 10 different views:9 in Categories 1 or 2 and 1 in Category 3 |
||||
|
■ Oxidative Induction Time (OIT) |
ASTM D3895 |
100 min. |
100 min. |
100 min. |
100 min. |
100 min. |
|
■ UV Resistance High Pressure OIT retained after 1600hrs |
ASTM D5885 |
50% |
50% |
50% |
50% |
50% |
|
Dimensions |
|
|
|
|
|
|
|
■ Roll Width (m) |
|
7 |
7 |
7 |
7 |
7 |
|
■ Roll Length (m) |
|
420 |
280 |
210 |
140 |
105 |

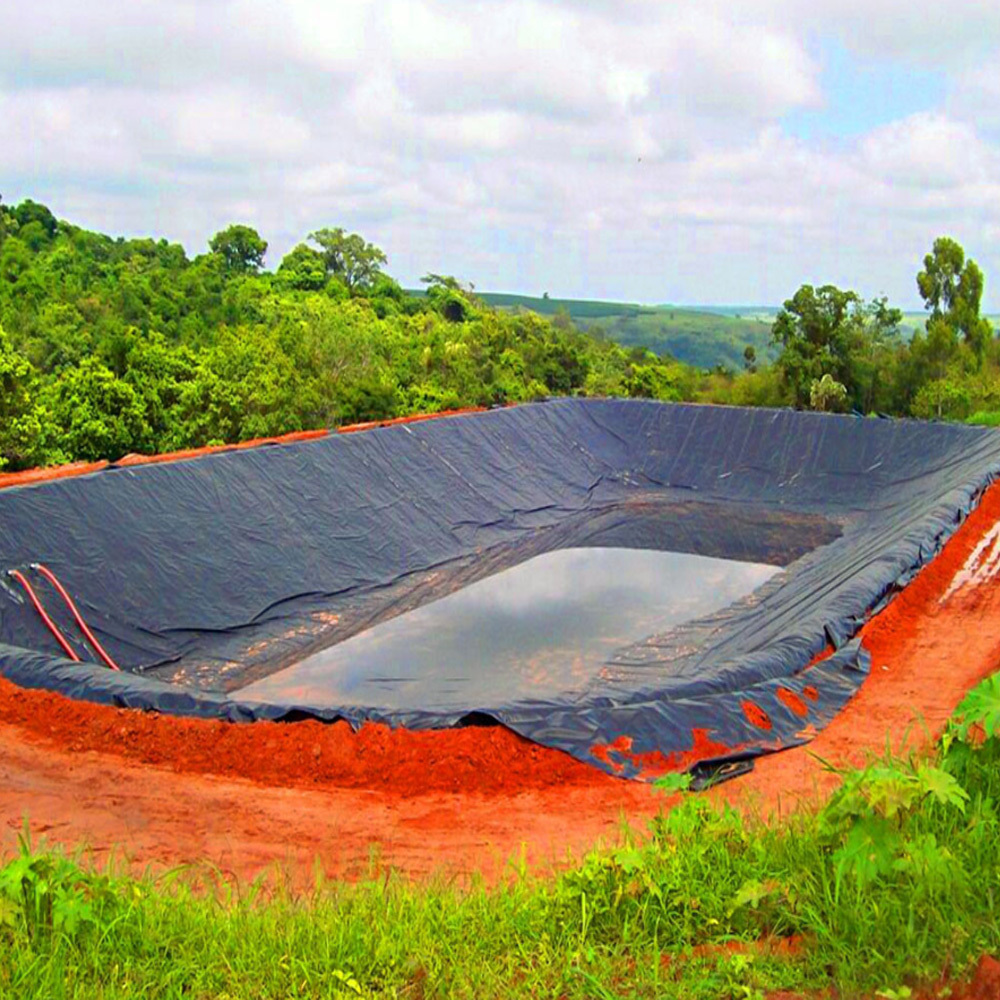

Applications；
Applied to the tasks of Landfill site, bank, dam, storage reservoir, channel, irrigation, highway, railway, tunnel, consuming tank, salt discipline bittern pan, chemical liquid storage, cure tank, synthetic lake and riverway etc.
