HDPE high-density Geomembrane
Classification :
keyword:
Geomembrane
PRODUCT DETAILS

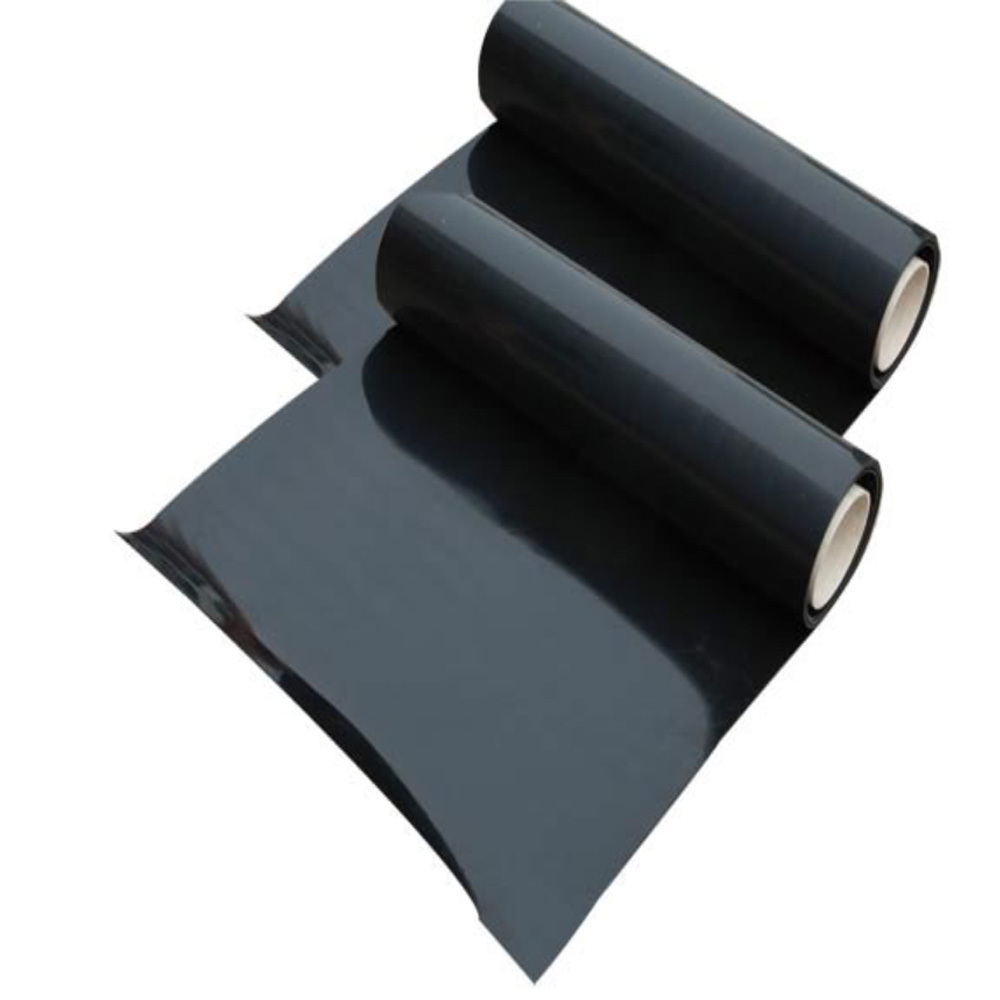

HDPE high-density Geomembrane
Introduction ；
Geomembrane is a kind of waterproof barrier material based on high polymer. It is mainly divided into low density polyethylene (LDPE) geomembrane, high density polyethylene (HDPE) geomembrane and EVA geomembrane.
Geomembrane action:
Geomembrane with a film thickness of 0.3-2.0mm is generally called a waterproof plate or waterproof coil. It is mainly used in tunnels (subway, submarine, highway, railway), reservoirs, artificial lakes, fish farms, water treatment farms, underground facilities, garbage burial sites, waste liquid and liquid storage, biogas digester, etc.
Specifications
|
Properties |
Test Method |
GMSH050 |
GMSH075 |
GMSH100 |
GMSH150 |
GMSH200 |
|
■ Thickness |
ASTM D5199 |
0.50 mm |
0.75 mm |
1.00 mm |
1.50 mm |
2.00 mm |
|
■ Density |
ASTM D1505 |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
|
Tensile Properties |
|
|
|
|
|
|
|
■ Yield strength ■ Break strength ■ Yield elongation ■ Break elongation |
ASTM D6693 Type IV
|
7 kN/m 13 kN/m 12% 700% |
11 kN/m 20 kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
|
■ Tear Resistance |
ASTM D1004 |
62 N |
93 N |
125 N |
187 N |
249 N |
|
■ Puncture Resistance |
ASTM D4833 |
160 N |
240 N |
320 N |
480 N |
640 N |
|
■ Stress Crack Resistance |
ASTM D5397 |
500 hrs |
500 hrs |
500 hrs |
500 hrs |
500 hrs |
|
■ Carbon Black Content |
ASTM D1603 |
2.0% |
2.0% |
2.0% |
2.0% |
2.0% |
|
■ Carbon Black Dispersion |
ASTM D5596 |
For 10 different views:9 in Categories 1 or 2 and 1 in Category 3 |
||||
|
■ Oxidative Induction Time (OIT) |
ASTM D3895 |
100 min. |
100 min. |
100 min. |
100 min. |
100 min. |
|
■ UV Resistance High Pressure OIT retained after 1600hrs |
ASTM D5885 |
50% |
50% |
50% |
50% |
50% |
|
Dimensions |
|
|
|
|
|
|
|
■ Roll Width (m) |
|
7 |
7 |
7 |
7 |
7 |
|
■ Roll Length (m) |
|
420 |
280 |
210 |
140 |
105 |

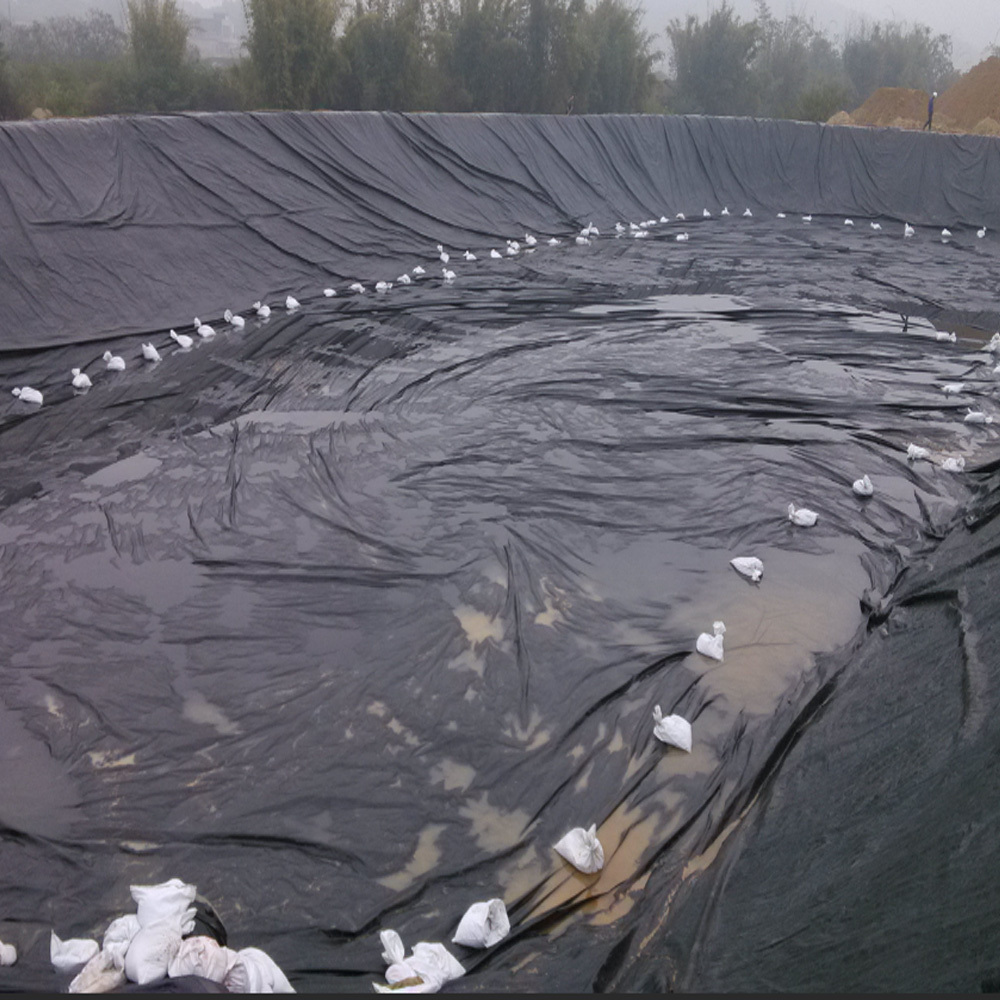

Applications
Applied to the projects of Landfill site, bank, dam, storage reservoir, channel, irrigation, highway, railway, tunnel, drinking tank, salt field bittern pan, chemical liquid storage, treatment tank, artificial lake and riverway etc.
