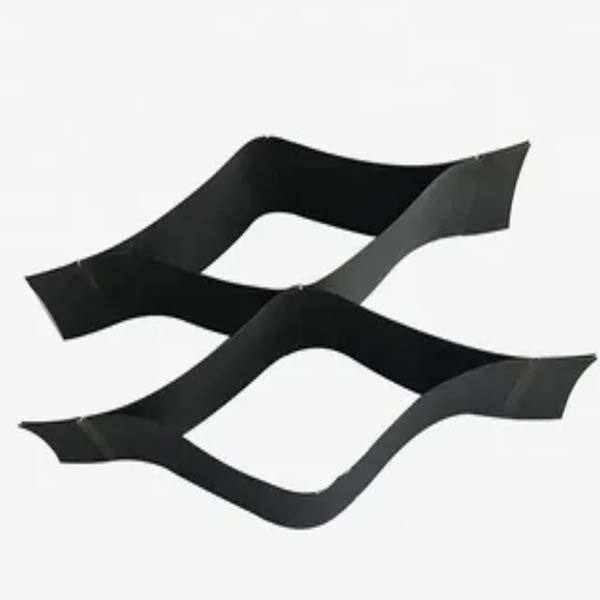

Secure highway HDPE Geocell
Introduction
Geocell is a net-shaped phone shape made from excessive density polyethylene by means of welding excessive depth thermoplastic sheet. It is bendy to fold at some stage in transportation, stretching out and being stuffed with stone or concrete for the duration of service, and forming into shape with effective lateral confinement and rigidity.
 |
 |
Performance；
It is flexible to fold during transportation,stretching out and being filled with stone or concrete during service,and forming into structure.
Application；
1.Geocell can be used as cushion coat to reinforce loading capability of susceptible ground.
2.Geocell can be paved in slope as slope safety structure.
3.Geocell can be used to construct the aid block structure.
Construction Site
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Specification
|
Item Model |
Height (mm) |
Welding distance(mm) |
Sheet thickness(mm) |
Seam peel strength≥(N) |
Expanded Cell Size(mm) |
Expanded panel size (m) |
|
|
smooth |
textured |
||||||
|
TGLG-100-330 |
100 |
330 |
1.1 |
1.5 |
1420 |
244X203 |
2.44X6.15 |
|
TGLG-150-330 |
150 |
2130 |
244X203 |
2.44X6.15 |
|||
|
TGLG-200-330 |
200 |
2840 |
244X203 |
2.44X6.15 |
|||
|
TGLG-100-356 |
100 |
356 |
1.1 |
1.5 |
1420 |
259X224 |
2.56X6.52 |
|
TGLG-150-356 |
150 |
2130 |
259X224 |
2.56X6.52 |
|||
|
TGLG-200-356 |
200 |
2840 |
259X224 |
2.56X6.52 |
|||
|
TGLG-100-400 |
100 |
400 |
1.1 |
1.5 |
1420 |
295X250 |
4X5 |
|
TGLG-150-400 |
150 |
2130 |
295X250 |
4X5 |
|||
|
TGLG-200-400 |
200 |
2840 |
295X250 |
4X5 |
|||
|
TGLG-100-445 |
100 |
445 |
1.1 |
1.5 |
1420 |
320X287 |
2.56X8.35 |
|
TGLG-150-445 |
150 |
2130 |
320X287 |
2.56X8.35 |
|||
|
TGLG-200-445 |
200 |
2840 |
320X287 |
2.56X8.35 |
|||
|
TGLG-100-660 |
100 |
660 |
1.1 |
1.5 |
1420 |
488X406 |
2.44X12.29 |
|
TGLG-150-660 |
150 |
2130 |
488X406 |
2.44X12.29 |
|||
|
TGLG-200-660 |
200 |
2840 |
488X406 |
2.44X12.29 |
|||
|
TGLG-100-712 |
100 |
712 |
1.1 |
1.5 |
1420 |
508X475 |
2.56X13.72 |
|
TGLG-150-712 |
150 |
2130 |
508X475 |
2.56X13.72 |
|||
|
TGLG-200-712 |
200 |
2840 |
508X475 |
2.56X13.72 |
|||
1
