Slope protection Three Dimensional Geomat

Classification :

keyword:

Three Dimensional Geomat

PRODUCT DETAILS

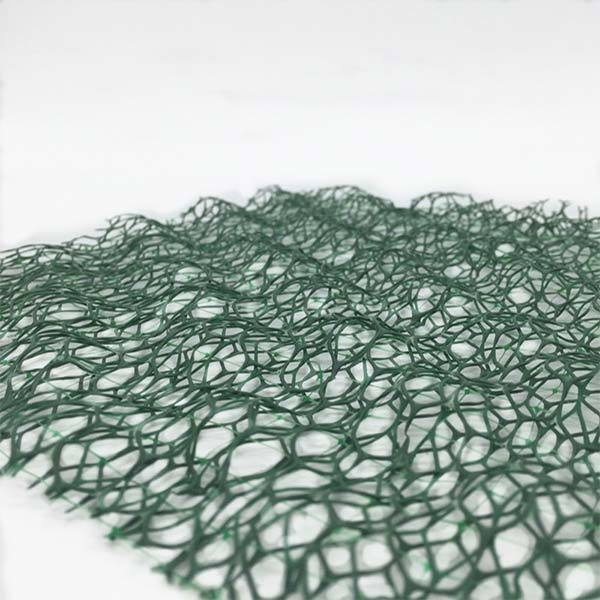

Slope protection Three Dimensional Geomat
Introduction

Three-dimensional mesh slope protection technology combines the advantages of geotechnical mesh and vegetation slope protection, and can effectively solve the protection problems of rock slope and high and steep slope.

Performance
1.Preventing soil erosion
2.Increasing the greening area
3.Improving the ecological environment





Application
1.Before the greensward grows, it prevents the surface of the land from the erosion of the wind and rain.
2.Forming compound protection layer with the plant, standing the wash-out of the high water level and
high speed current.
3.Replacing the concrete, asphalt, and block, using in the slope surface protection of roadway, railway, river-way, dyke, and the hillside, etc.



Specification



Specification

EM2

EM3

EM4

EM5

Weight per sq.m.≥(g/m2)

220

260

350

430

Thickness≥(mm)

10

12

14

16

Width≥(m)

2

Length≥(m)

30

Vertical tensile strength ≥(kN/m)

0.8

1.4

2

3.2

Horizontal tensile strength ≥(kN/m)

0.8

1.4

2

3.2

Remark: The special spec or size can be manufactured according to the demands of the contract or agreement
