Fiberglass Geogrid
Classification :
keyword:
Fiberglass Geogrid
PRODUCT DETAILS

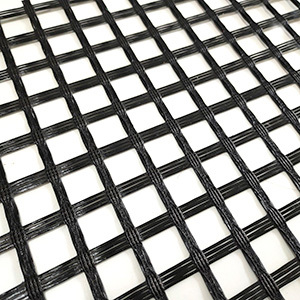

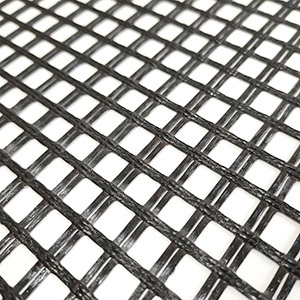

Fiberglass Geogrid
Introduction
Fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life of pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.
Features
High tensile strength in MD and TD directions
Low Elongation
High flexibility
High and low temperature resistance
Application

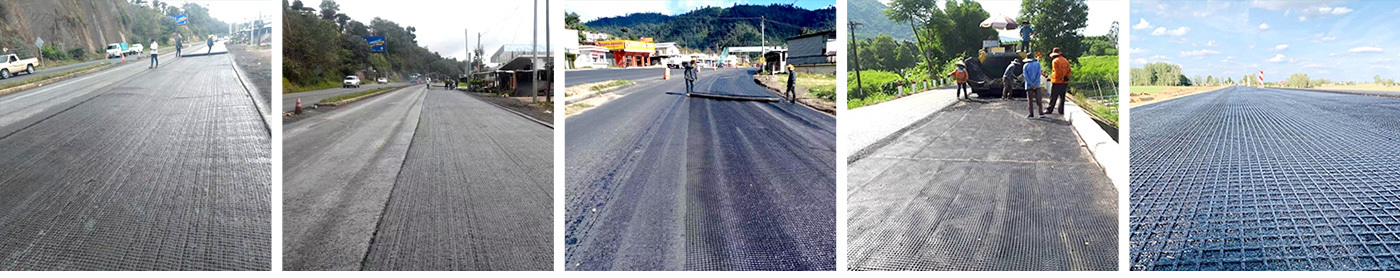

Fiberglass geogrid is eigineered for road, highways, airport runways, road widening, road maintenance and repair, composite pavements,etc.
|
Specification |
EGA30-30 |
EGA50-50 |
EGA80-80 |
EGA100-100 |
EGA120-120 |
|
|
Mesh size(mm) |
25.4×25.4 Or 12.5×12.5 |
|||||
|
Breaking strength ≥（KN/m） |
Warp direction |
30 |
50 |
80 |
100 |
120 |
|
Across warp |
30 |
50 |
80 |
100 |
120 |
|
|
Elongation at break ≤（%） |
Warp direction |
3 |
||||
|
Across warp |
3 |
|||||
|
Elasticity modulus(GPA) |
67 |
|||||
|
Thermal tolerance |
-100~280℃ |
|||||
|
Width |
1~6m |
|||||
Notes MD = Machine Direction; TD = Transverse Direction
Factory Appearance
