Polyester Geogrid
Classification :
keyword:
Polyester Geogrid
PRODUCT DETAILS
Specification - Polyester geogrid
Introduction

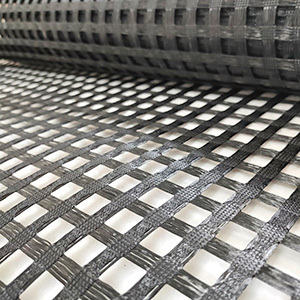

Lin Yuan Polyester biaxial geogrid is manufactured from high tenacity multifilament polyester yarns and coated with durable polymer, it is used to stabilize the earth structures, such as road, highway, railway, airport, MSE wall, steep slope and pavement construction.
Features:
1) High tensile strength
2) High tear-resistant
3) Strong combination with gravel and soil
Application: It mainly applied in strengthening soft ground of rail and road
|
Item Spec |
JBGS 3030 |
JBGS 5050 |
JBGS 8080 |
JBGS 100100 |
JBGS 120120 |
JBGS 150150 |
JBGS 200200 |
JBGS 300300 |
JBGS 6030 |
JBGS 8030 |
JBGS 10030 |
JBGS 12030 |
JBGS 15030 |
JBGS 20030 |
JBGS 40050 |
|
|
Tensile strength ≥KN/m |
weft |
30 |
50 |
80 |
100 |
120 |
150 |
200 |
300 |
60 |
80 |
100 |
120 |
150 |
200 |
400 |
|
Warp |
30 |
50 |
80 |
100 |
120 |
150 |
200 |
300 |
30 |
30 |
30 |
30 |
30 |
30 |
50 |
|
|
Elongation ≤ |
13% |
|||||||||||||||
|
Mesh size（mm） |
25.4×25.4 or50.8x50.8 or 76.2x76.2 |
|||||||||||||||
Notes: Roll width can be 3.95m, 5m, 5.2m,5.95m or as per customized.

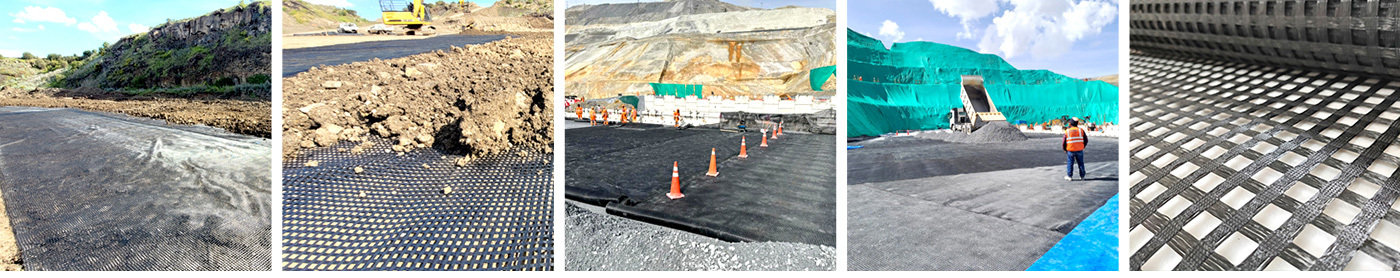

Factory Appearance
