Specification - Smooth HDPE Geomembrane
Introduction
Smooth HDPE Geomembrane is manufactured from High Density Polyethylene resin with proportional carbon black antioxidant, anti-aging and UV-resistance materials by the technology of coextrusion-blown triple layer. The surfaces of both sides are smooth.

Applications

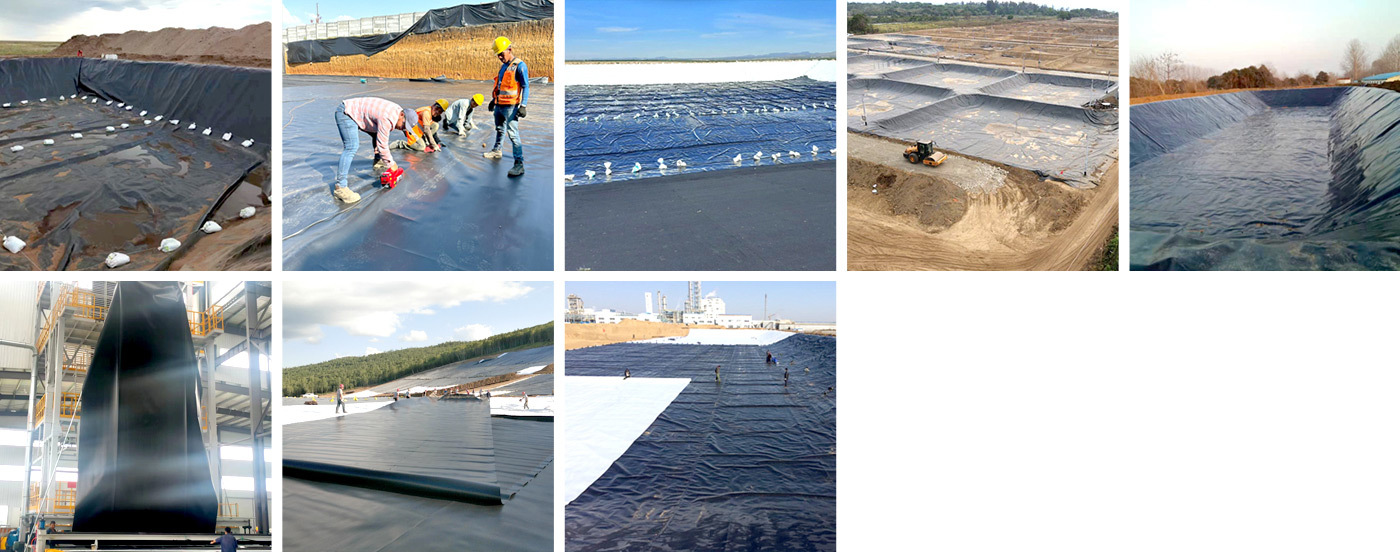

Applied to the projects of Landfill site, bank, dam, storage reservoir, channel, irrigation, highway, railway, tunnel, drinking tank, salt field bittern pan, chemical liquid storage, treatment tank, artificial lake and riverway etc.

Specifications

Properties	Test Method	GMSH050	GMSH075	GMSH100	GMSH150	GMSH200
■ Thickness	ASTM D5199	0.50 mm	0.75 mm	1.00 mm	1.50 mm	2.00 mm
■ Density	ASTM D1505	0.940 g/cc	0.940 g/cc	0.940 g/cc	0.940 g/cc	0.940 g/cc
Tensile Properties
■ Yield strength ■ Break strength ■ Yield elongation ■ Break elongation	ASTM D6693 Type IV	7 kN/m 13 kN/m 12% 700%	11 kN/m 20 kN/m 12% 700%	15 kN/m 27 kN/m 12% 700%	22 kN/m 40 kN/m 12% 700%	29 kN/m 53 kN/m 12% 700%
■ Tear Resistance	ASTM D1004	62 N	93 N	125 N	187 N	249 N
■ Puncture Resistance	ASTM D4833	160 N	240 N	320 N	480 N	640 N
■ Stress Crack Resistance	ASTM D5397	500 hrs	500 hrs	500 hrs	500 hrs	500 hrs
■ Carbon Black Content	ASTM D1603	2.0%	2.0%	2.0%	2.0%	2.0%
■ Carbon Black Dispersion	ASTM D5596	For 10 different views:9 in Categories 1 or 2 and 1 in Category 3
■ Oxidative Induction Time (OIT)	ASTM D3895	100 min.	100 min.	100 min.	100 min.	100 min.
■ UV Resistance High Pressure OIT retained after 1600hrs	ASTM D5885	50%	50%	50%	50%	50%
Dimensions
■ Roll Width (m)		7	7	7	7	7
■ Roll Length (m)		420	280	210	140	105

# Lin Yuan Geosynthetics reserves the right to change the product specifications at any time.
